The Fishbone (Ishikawa) Diagram: A Comprehensive Guide to Effective Problem Solving

The fishbone diagram is one of the most reliable thinking tools in quality and operations management, yet most teams use it as a brainstorming checklist rather than a genuine investigation. At StrategyPeeps, we use it to slow down the diagnosis so the solution moves faster — because the cost of fixing the wrong cause almost always exceeds the cost of finding the right one. This guide explains what the fishbone diagram is, how to build one that actually works, and the mistakes that quietly undermine the results.

What is a fishbone (Ishikawa) diagram?

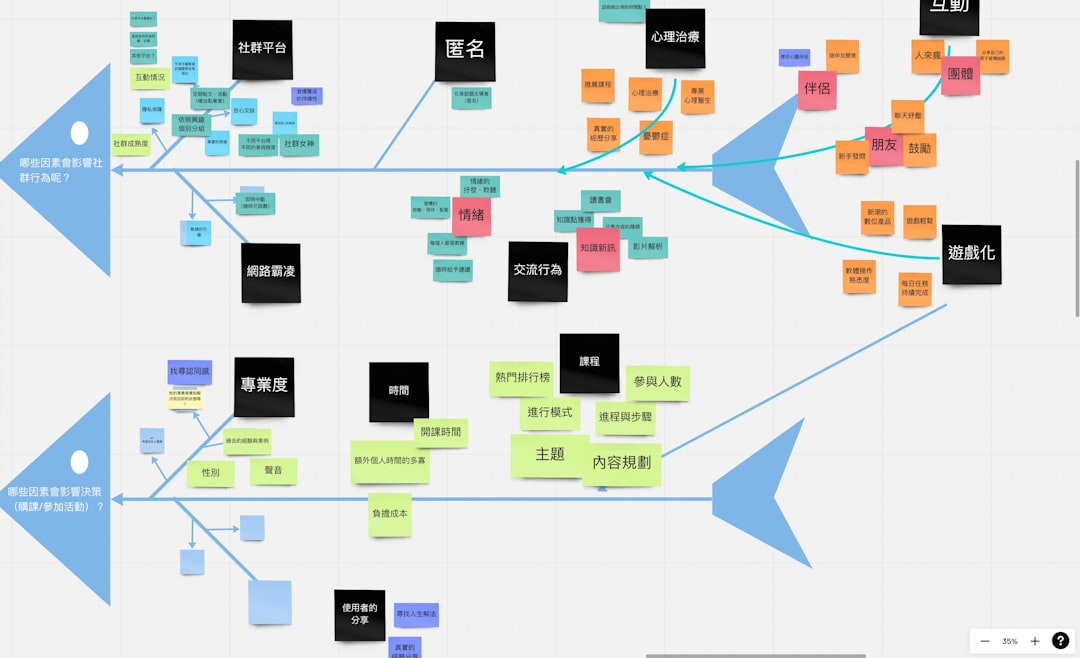

A fishbone diagram is a cause-and-effect diagram that visually organises the possible causes of a single, well-defined problem. It is named after Kaoru Ishikawa, the Japanese quality-control expert who popularised it, and it earns the “fishbone” nickname from its shape: the problem sits in the head, a horizontal spine runs across the page, and angled “bones” branch off to hold categories of causes.

The point of the structure is to force breadth before depth. Most problem-solving sessions go like this: something breaks, everyone shares their theory, and the team implements the loudest voice in the room. The fishbone diagram interrupts that pattern by spreading the investigation across distinct categories, so no single assumption dominates and systemic causes become visible.

The six categories of a fishbone diagram

The classic “6M” categories work for most operational and service problems. Each one is a lens that prompts a different set of questions.

How to build a fishbone diagram that actually works

Start with the problem statement as your fish head, and be ruthlessly specific. Not “customer complaints are up,” but “customer wait-time complaints increased 34% in the last quarter for our Toronto call centre.” A vague problem produces a vague diagram.

Draw your main bone horizontally, then add the six category bones. For each category, brainstorm specific potential causes. This is where most teams rush. Spend 10–15 minutes per category. Ask “what could cause this?” then “what could cause that?” until you hit bedrock — the point where the answer is a system or a decision, not another symptom.

A worked example

We worked with a client whose assembly line was missing daily targets by 15%. The obvious answer seemed to be equipment breakdowns. But the fishbone revealed the real culprit under the Measurement category: their efficiency calculation used outdated cycle times, so operators were pacing themselves to false targets. The “machine” theory would have triggered expensive repairs that solved nothing. The structure is what surfaced the actual cause.

Three critical mistakes that kill your analysis

Mistake 1: Treating it like a checklist. Teams fill out each category because they have to, not because they are genuinely investigating. Half the causes end up generic — “lack of training” appears in every fishbone regardless of the real problem.

Mistake 2: Stopping at the diagram. The fishbone is investigation, not solution. You still need to validate which causes actually matter. We use data, quick tests, and focused observation to separate real causes from educated guesses.

Mistake 3: Building it alone. The power comes from diverse perspectives. Include people who do the actual work, not just managers who think they know how work gets done. The best insights usually come from someone saying “actually, that’s not how we do it.” When your team works remotely, that diversity is harder to capture in real time — our companion guide on collaborating on fishbone diagrams with virtual teams covers the tools and facilitation tactics that fix it.

Making it practical in your organisation

For ongoing issues, build your fishbone in a focused 90-minute session. For crisis situations, you can complete a rapid version in 30 minutes, but plan to revisit it with more data. We have helped teams use fishbone analysis to tackle problems ranging from 67% document-processing delays to software deployment failures that cost six figures per incident. The pattern is always the same: slow down the investigation to speed up the solution.

The real value shows up when you combine the fishbone with other tools. Use it to focus your data collection, guide your Lean Six Sigma projects, or structure your AI automation assessments — it stops you from automating broken processes or optimising the wrong bottleneck. The fishbone is one technique within a broader discipline; for the end-to-end method, see our guide to root cause analysis for sustainable problem-solving.

Here is what changes when teams master this approach: they stop implementing quick fixes that create new problems six months later, and they spend roughly 40% less time in follow-up meetings because the root cause actually got addressed. The fishbone diagram is not magic. It is structured thinking that forces you to look beyond the obvious — and in organisations drowning in urgent problems, that structure becomes the difference between fighting fires and preventing them.

Frequently asked questions

What is the difference between a fishbone diagram and the 5 Whys?

The fishbone diagram maps many possible causes across categories in a single view, giving you breadth. The 5 Whys drills down one causal chain at a time, giving you depth. They work best together: use the fishbone to surface candidate causes, then apply the 5 Whys to the most promising branches.

When should I use a fishbone diagram?

Use it when a problem is recurring, the cause is genuinely unclear, and multiple functions could be involved. It is most valuable when teams keep proposing competing explanations, because the category structure forces every theory onto the same page where it can be tested.

How many causes should a fishbone diagram have?

There is no fixed number. Aim for enough specific causes under each category that you are confident you have not missed an obvious lens, then stop generating and start validating. Quality of causes matters far more than quantity — three precise, testable causes beat twenty generic ones.

Is the Ishikawa diagram only for manufacturing?

No. While it originated in manufacturing quality control, the same six categories apply cleanly to service, software, finance, and operations problems. The labels can be adapted — for example, software teams sometimes use Code, Data, Infrastructure, and Process — but the cause-and-effect logic is universal.
